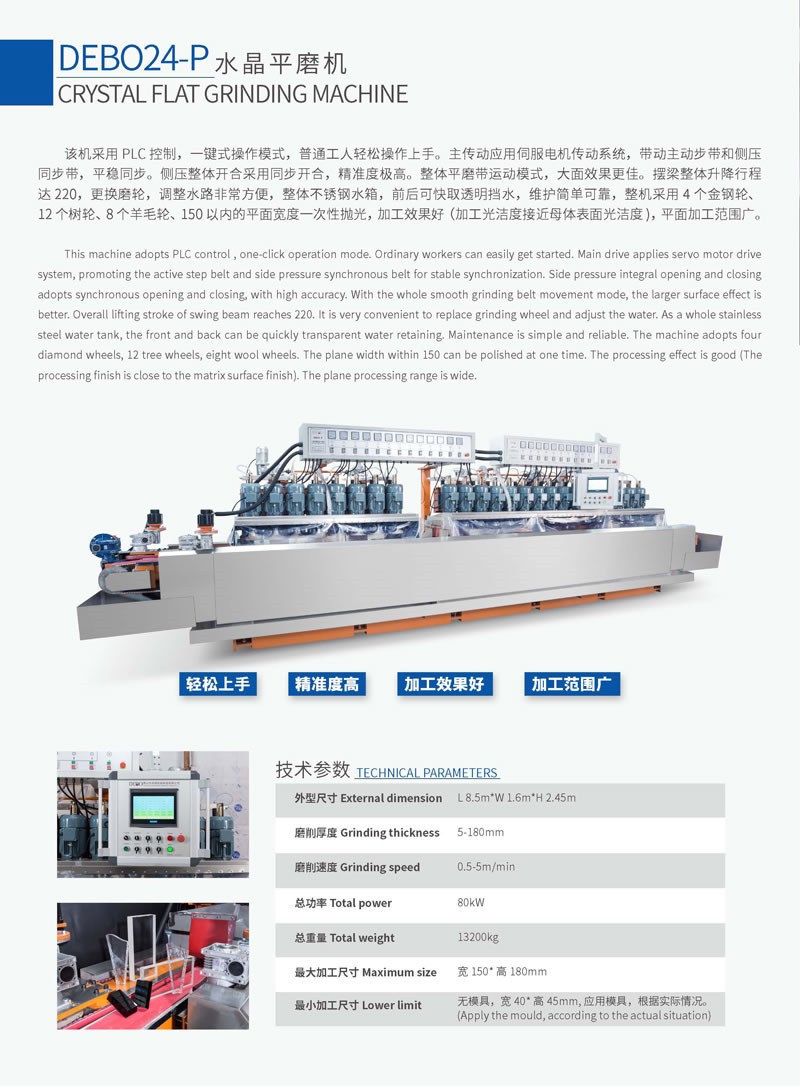

DEBO24-P水晶平磨机:该机采用PLC控制，一键式操作模式，普通工人轻松操作上手。主传动应用伺服电机传动系统，带动主动步带和侧压同步带，平稳同步。侧压整体开合采用同步开合，精准度极高。整体平磨带运动模式，大面效果更佳。摆梁整体升降行程达220，更换磨轮，调整水路非常方便，整体不锈钢水箱，前后可快取透明挡水，维护简单可靠，整机采用4个金钢轮，12个树轮，8个羊毛轮，150以内的平面宽度一次性抛光，加工效果好（加工光洁度接近母体表面光洁度），平面加工范围广。

DEBO24 -p Crystal Flat Grinding Machine: This machine adopts PLC control, one-click operation mode. Ordinary workers can easily get started. Main drive applies servo motor drive system, promoting the active step belt and side pressure synchronous belt for stable synchronization. Side pressure integral opening and closing adopts synchronous opening and closing, with high accuracy. With the whole smooth grinding belt movement mode, the larger surface effect is better. Overall lifting stroke of swing beam reaches 220. It is very convenient to replace grinding wheel and adjust the water. As a whole stainless steel water tank, the front and back can be quickly transparent water retaining. Maintenance is simple and reliable. The machine adopts four diamond wheels, 12 tree wheels, eight wool wheels. The plane width within 150 can be polished at one time. The processing effect is good (The processing finish is close to the matrix surface finish). The plane processing range is wide.

技术参数Technical Parameters

磨削速度Grinding speed:0.5-5m/min

磨削厚度Grinding thickness：5mm-180mm

总重量Total weight：13200kg

总功率Total power：80kw

最小加工尺寸Lower limit：无模具，宽Wide:40*高Tall:45mm,应用模具，根据实际情况(Apply the mould, according to the actual situation)

最大加工尺寸Maximum size：宽Wide:150*高Tall:180mm

外型尺寸External dimension：长Long:8.5(米meter)*宽Wide:1.6(米meter)*高Tall:2.45(米meter)
