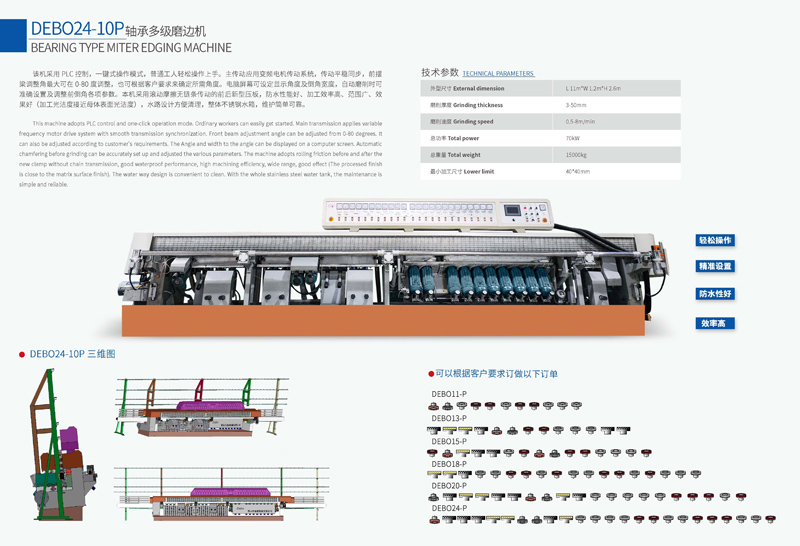

DEBO24-10P轴承多级边机:该机采用PLC控制，一键式操作模式，普通工人轻松操作上手。主传动应用变频电机传动系统，传动平稳同步。前摆梁调整角最大可在0-80度调整，也可根据客户要求来确定所需角度。电脑屏幕可设定显示角度及到角宽度，自动磨削时可准确设置及调整前倒角各项参数。 本机采用滚动摩擦无链条传动的前后新型压板，防水性能好，加工效率高，范围广，效果好（加工光洁度接近母体表面光洁度），水路设计方便清理，整体不锈钢水箱，维护简单可靠。(水晶平磨机水晶磨边机石材平磨机石材磨边机)

DEBO24-10p Bearing Type Miter Edging Machine: this machine adopts PLC control and one-click operation mode. Ordinary workers can easily get started. Main transmission applies variable frequency motor drive system with smooth transmission synchronization. Front beam adjustment angle can be adjusted from 0-80 degrees. It can also be adjusted according to customer's requirements. The Angle and width to the angle can be displayed on a computer screen. Automatic chamfering before grinding can be accurately set up and adjusted the various parameters. The machine adopts rolling friction before and after the new clamp without chain transmission, good waterproof performance, high machining efficiency, wide range, good effect (The processed finish is close to the matrix surface finish). The water way design is convenient to clean. With the whole stainless steel water tank, the maintenance is simple and reliable.

技术参数Technical Parameters

磨削速度Grinding speed:0.5-8m/min

磨削厚度Grinding thickness：3mm-50mm

总重量Total weight：150000kg

最小加工尺寸Lower limit：40*40mm

总功率Total power：70kw

外型尺寸External dimension：长Long:11(米meter)*宽Wide:1.2(米meter)*高:Tall2.6(米meter)
